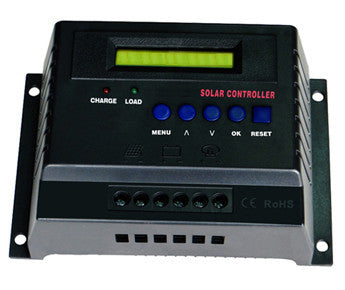

50-Amp 12-Volt/24-Volt Digital Solar Power Charge Controller

FEATURED Overload protection Short circuit protection Reverse discharge protection Reverse polarity connection protection Thunder protection Low voltage protection Overcharge protection Battery stop and charge voltage HVD sets up Charge and low voltage LCD sets up Display the capability of the battery SOC Loads and comeback setups Intellectualized temperature compensation Record and calculate the charged AH and display it on the LCD screen Record and calculate the discharged AH and display it on the LCD screen working temperature:-25C/+55C

SPECIFICATION

Model CS-50 Rated Voltage 12V / 24V Automatic voltage recognition Max Load current 50A Input voltage range 12V~17V / 24V~34V Length=1m Charge loop drop < 0.25V Length=1m Discharge loop drop < 0.05V Over voltage protection 17V / 34V Full charge cut 13.7V / 27.4V(Default value, can be otherwise set) Low voltage cut 10.5V~11V / 21V~22V(Default value, can be otherwise set) Temperature compensation -3mv/C/cell No load loss Less than or equal to 20mA Max wire area 4mm2 Ambient temperature -25C/+55C

APPLICATION

• Solar charge controllers keep your batteries safe. A solar charge controller is required for any solar array of 12-Watt or higher. Solar panels are unregulated and can have a-voltage higher than necessary to charge 12-volt batteries. 50-Amp Solar Digital Charge Controller will prevent overcharging of batteries by regulating the-voltage from a 12-volt solar panel to a safe level for charging 12-volt batteries. Designed for use with 12-volt solar panels this solar charge controller is safe for use with up to 50-amp or 1200-Watt from a solar array. This controller will also prevent over discharge of your battery as well as protect from high-voltage surges, short circuit and loss of power through the solar panel at night. A digital LCD screen displays charging current, load current, and battery-voltage in 5 second intervals. Two LED lights display charge function and battery status. A load terminal on the solar charge controller let you dedicate one item to run through the controller, when the batteries reach critical-voltage the load will be automatically turned off to prevent a dead battery and allow the solar panel to recharge the battery before the load turns on again. This feature helps to prolong the life of your battery. This charge controller may also be used with 24-volt solar panels and batteries. The charge controller is self-adjusting and will automatically set the charge cycle. You can connect multiple solar panels up to one controller so long as you do not exceed 1200-Watt or 50-amp. The charge controller is meant to be permanently connected to the battery and the solar array even when you are drawing power from the battery. Solar charge controllers should installed close to the battery in a dry and ventilated area.
