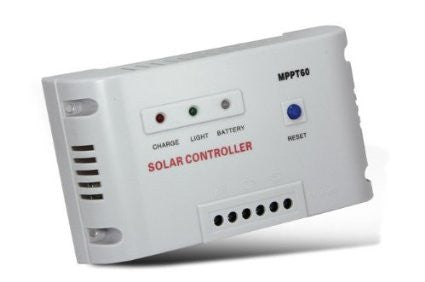

60A MPPT Solar Regulator Charge Controller 12V 24V Autoswitch Solar Panel

  • Sale
  • $139.99



MPPT60 60A solar controller applied to the solar photovoltaic system which is used to coordinate solar panels, storage battery and load.

SPECIFICATION

Model

AS-60





Rated Voltage

12/24V Automatic voltage recognition

Max Load current

60A





Input voltage range

12V-20V/24V-40V

Length=1m

Charge loop drop

<0.25V

Length=1m

Discharge loop drop

<0.05V

Over voltage protection

12V-20V/24V-40V

Full charge cut

13.7V(Default value, can be otherwise set)

Low voltage cut

10.5V(Default value, can be otherwise set)

Temperature compensation

-3mv/°C/cell

No load loss

=45mA

Max wire area

12mm2

Ambient temperature

-25°C——+55°C

Free Accessory Kit (Solar System Diagram)





APPLICATION



    • MPPT60 60A solar controller applied to the solar photovoltaic system which is used to coordinate solar panels, storage battery and load. It is a very important assembly in the photovoltaic system. It is different from other solar controllers that it is add the comprehensive protection function makes the whole solar photovoltaic system operate efficiently and safely.
    • MPPT60 60A solar controller can adjust automatically the working voltage of solar panels, which can make solar panels work co sistently in the maximum power point of the V-A characteristic curve in a whole day. Compared with common solar controllers, it is equipped with temperature compensation function, can make the work efficiency of photovoltaic modules increased by 30 Percent, and can observably prolong the life of the storage battery.
    • Main features: Compared with normal solar charge controller, this MPPT controller could increase efficiency by 10 - 30 Percent Can charge and discharge at the same time Always keep the battery in full status Battery over-charging /over-discharging protection Prevent the battery from reverse charging to solar panels during nights
    • Reverse polarity protection for battery Reverse polarity protection for solar panels When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working. Thunder protection The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature.
